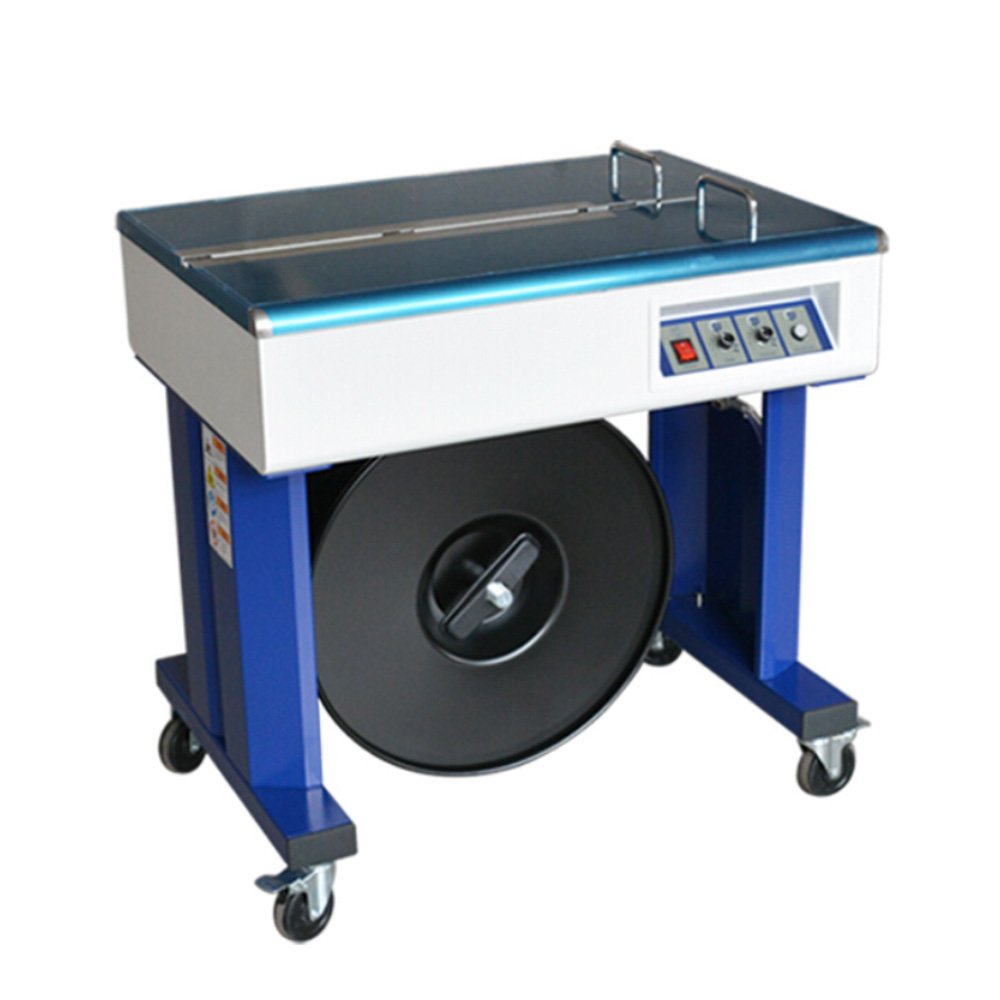

YS-A2H Semi Automatic Strapping Machine
A great compact every day use strapping machine, built for simplicity of use, reliability and great value. This machine is very easy to load with an exposed coil holder and will feed at the touch of a button, making loading and re loading of this machines quick and straight forward. the operational controls are equally effective and simple with a dial for strap length and tension control. This machine uses 200/190mm core strapping as standard able to accept widths from 9 - 15 mm.
Features:
1. Quiet electric machine and it has the start function to reduce noise and energy consumption.
2. Easy to use and simple to maintain.
3. High tension for heavy packages up to 45 kg.
4. Quick and easy change of strip coil.
5. Electronic adjustment of strapping time and tension.
Hotline:
+86-757-8540-2680
Specifications:
|
Product Code |
YS-A2H |
YS-A2F |
YS-A2C |
YS-A2L |
|
Applicable Strap |
Polypropylene Strap |
|||
|
Strap Size |
Width: 5-15mm, Thickness: 0.5-0.8mm |
|||
|
Applicable Strap Spool |
Inner Dia.: 200-210mm. Outer Dia.: 400-500mm, Width: 160-190mm |
|||
|
Power Supply |
110V/220V, 50/60HZ, 1PH, 0.25KW |
|||
|
Packing Speed |
<= 3 second/strap |
|||
|
Tension Range |
3-45KGS |
|||
|
Hot-adhering Position |
Bottom |
|||
|
Control System |
PC Board Control |
|||
|
Working Table Height |
760mm |
750mm |
760mm |
460mm |
|
Machine Dimension |
755mm x 550mm x 760mm |
840mm x 545mm x 750mm |
755mm x 540mm x 760mm |
755mm x 550mm x 460mm |
|
Machine Weight |
N.W.: 70KGS, G.W.: 78KGS |
N.W.: 70KGS, G.W.: 80KGS |
N.W.: 60KGS, G.W.: 67KGS |
N.W.: 60KGS, G.W.: 69KGS |
|
Packing Measurement |
780mm x 570mm x 900mm |
860mm x 550mm x 840mm |
780mm x 570mm x 900mm |
760mm x 570mm x 660mm |
