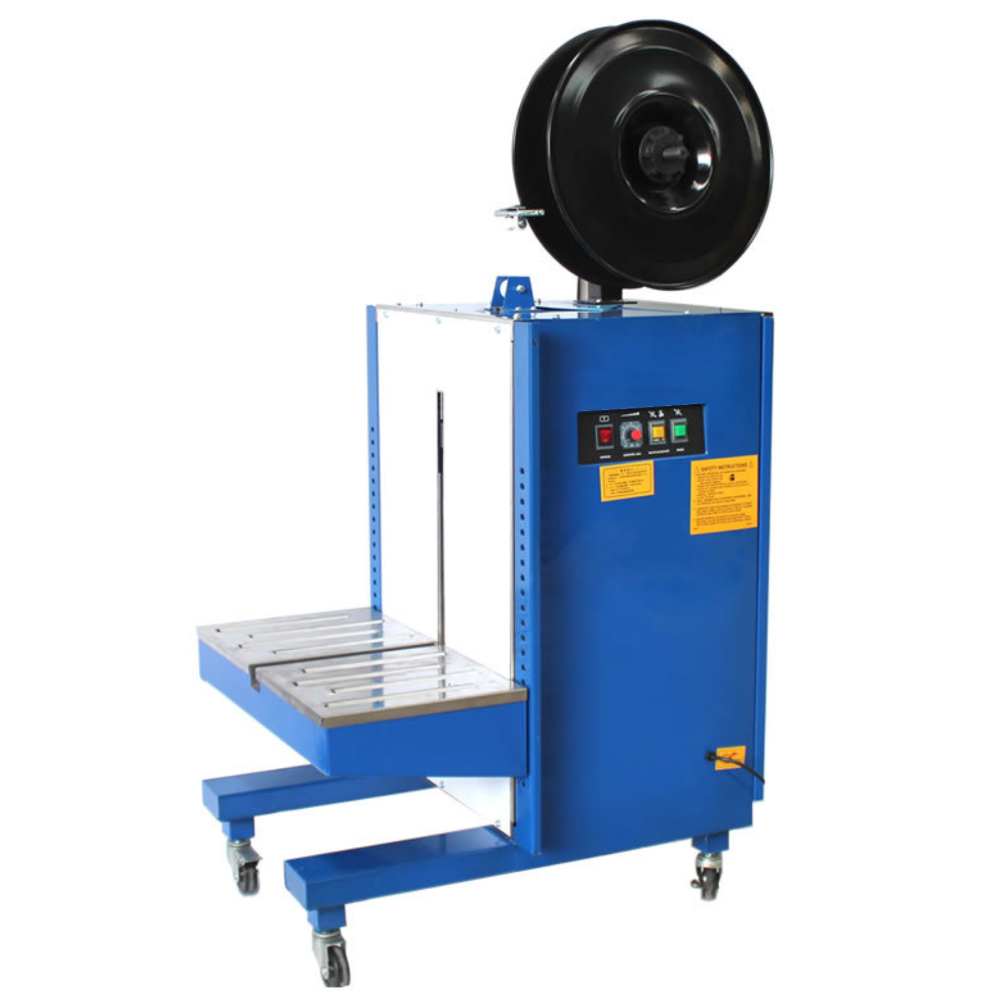

JW-8028 Side Action Strapping Machine
The JW-8028 is a side-seal, semi-auto strapping machine. The strapping head is mounted on the side of the machine frame to protect it from dust and water which means it is great for dusty, moist, or harsh working environments such as meat, fish, poultry, and agricultural processing plants.
Features:
1. Portability. This machine is compact and lightweight, enabling easy transportation, and only requires a small space for installation.
2. Single Motor Operation. A single motor powers the machine. Stable operation is assured even if the voltage drops.
3. Easy Adjustment. Adjustment for use of any strap in a width up to 15.5 mm can be made by slackening off only four screws.
4. No Strap Damage. The feed system, strap tensioning device, and cams are designed to eliminate splitting, bending, and scratching.
Hotline:
+86-757-8540-2680
Specifications:
|
Product Code |
JW-8020 |
JW-8021 |
JW-8022 |
JW-8028 |
|
Applicable Strap |
Polypropylene Strap |
|||
|
Strap Size |
Width: 9-15mm, Thickness: 0.5-0.6mm |
|||
|
Power Supply |
110V/220V, 50/60HZ, 1PH, 0.65KW |
|||
|
Packing Speed |
1.5 seconds/strap |
|||
|
Tension Range |
5-60KGS |
|||
|
Control System |
PC Board Control |
|||
|
Hot-adhering Position |
Bottom |
Bottom |
Bottom |
Side |
|
Working Table Height |
735mm |
480mm |
735mm |
420-900mm |
|
Machine Dimension |
895mm x 565mm x 735mm |
1510mm x 565mm x 480mm |
895mm x 565mm x 735mm |
675mm x 880mm x 1650mm |
|
Machine Weight |
90KGS |
80KGS |
90KGS |
140KGS |
