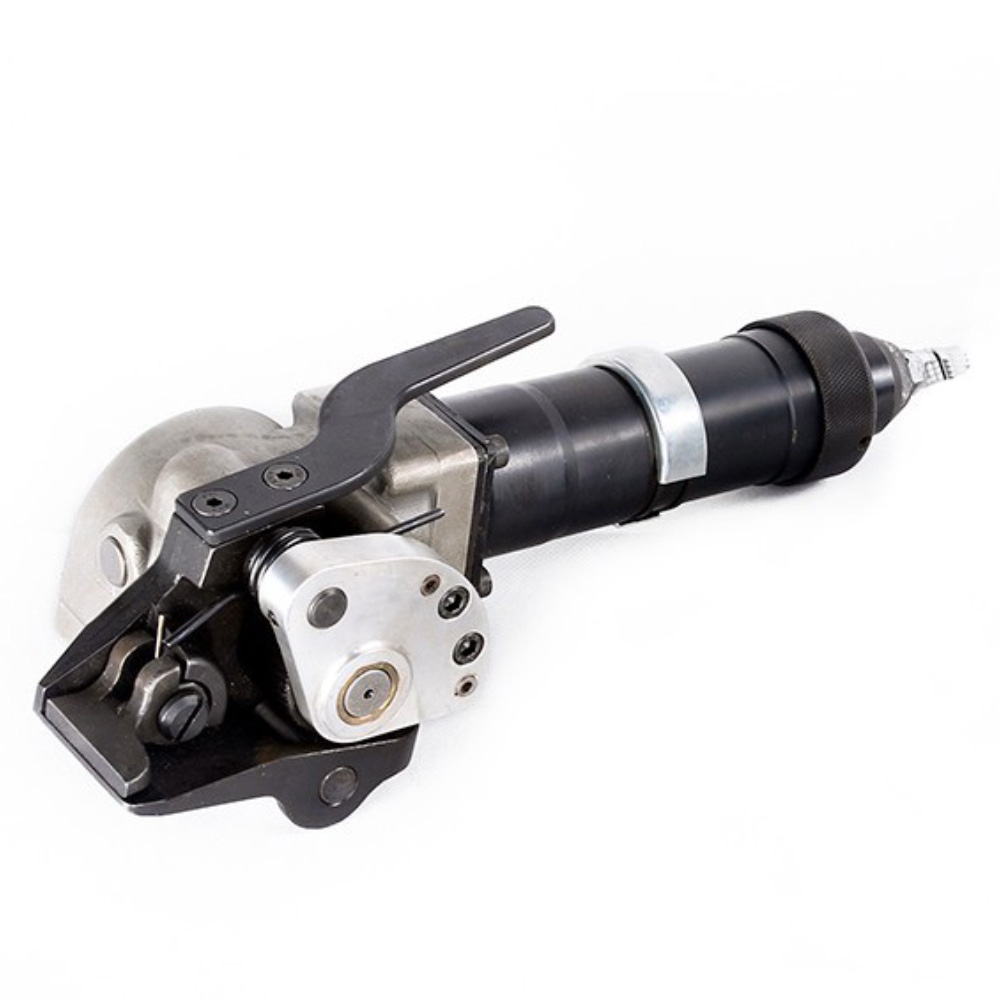

KCL-19/32 Pneumatic Steel Strapping Tensioner
This pneumatic tensioner KCL-19/32 is intended for strapping heavy round or irregularly shaped objects. It is suitable for places, where it is not possible to use balancer for hanging the strapping tool. It can be used only together with a suitable sealer (e.g. type KCS-19/32). It is indended for medium or high frequency jobs.
Features:
1. Steel strap of the width of 19-32 mm
2. Suitable for vertical strapping, resp. in places where is not possible to use the combined hand strapping tool suspended on the balancer
3. High tightening power
4. The joint is made by buckle notching - single or double notching with sealers
Hotline:
+86-757-8540-2680
Specificattions:
|
Product Code |
Applicable Strap |
Closure Type |
Strap Thickness |
Strap Width |
Max Tension |
Air Pressure |
Dimension |
Weight |
|
KCL-19/32 |
Steel Strap |
Buckle |
0.8-1.2mm |
19mm/32mm |
>=9.5KN |
0.4-0.6Mpa |
380 x 110 x 130mm |
4.8KGS |
|
KCS-19/32 |
Steel Strap |
Buckle |
0.8-1.2mm |
19mm/32mm |
>=16.8KN |
0.4-0.6Mpa |
240 x 110 x 300mm |
3.5KGS |
|
KZ-19/32 |
Steel Strap |
Buckle |
0.8-1.2mm |
19mm/32mm |
>=9KN |
0.4-0.6Mpa |
460 x 270 x 360mm |
15.5KGS |
|
GZD-19B |
Steel Strap |
Buckle |
0.4-0.8mm |
13-19mm |
>=4KN |
0.4-0.6Mpa |
320 x 220 x 280mm |
5.0KGS |
