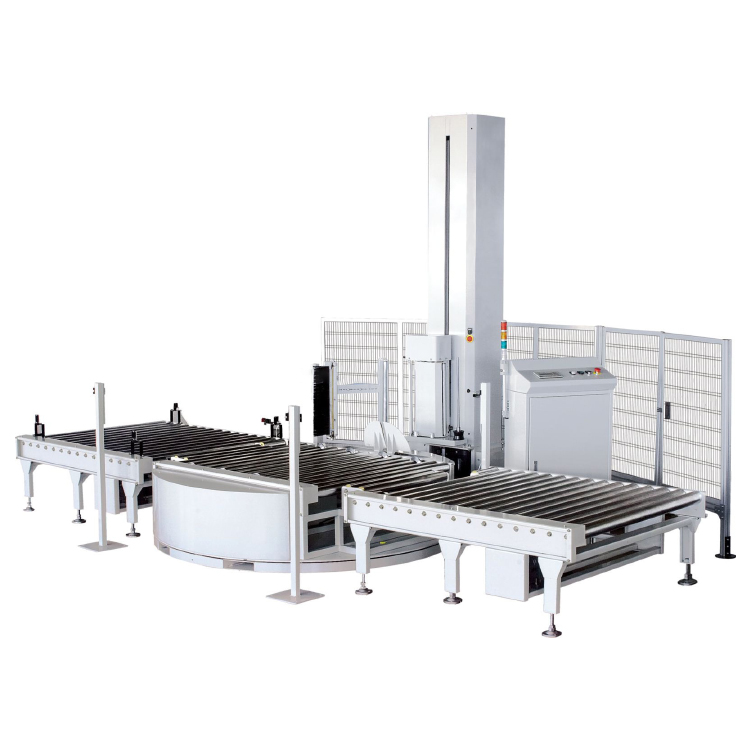

FG-2000D Full Automatic Pallet Stretch Wrapper

Full Automatic Pallet Stretch Wrapper is suitable for unmanned packing system, automatic pull on and break film,soft start/stop,PLC control, home position, sensor test pallet height.
It is widely used inchemical industry,electronic industry, building materials, homeappliances, papermaking, foodstuff and drink etc.
Features:
1. Adopting programmable control (freguency converter), reliable in performance, convenient in operation;the lapping type and times can be designed on customers' requirements.
2. Equipped with a photoelectric detector, automatically tests the goods height and controls the travel limit
3. Rotary table can be reset automatically, thus ensures correct in-and out position of the tray.
4. Custom-made specification is available and also provides a complete set of packing system of conveving line

Hotline:
+86-757-8540-2680

Product details

Specification:

Product Code	FG-2000D
Power	380V, 50/60HZ, 3PH
Air Pressure	0.4MPa - 0.6MPa
Turntable Speed	0-10rpm
Dia. of Turntable	φ2000mm
Table Height	≥450mm (Roller Type)
Roller Dia.	φ76mm
Mast Height	2400mm (Customized)
Capacity	2000KGS
Effective Height	Mast Height - 400mm
Stretch Film Size	Width:≤5000mm, Outer Dia. ≤φ280mm
Machine Dimension	L3000mm x W2000mm x H2400mm
Machine Weight	550KGS
Optional	1.Powered Roller Conveyor 2. Sticking Mould Construction 3.Safety Fence 4.Protective Raster
