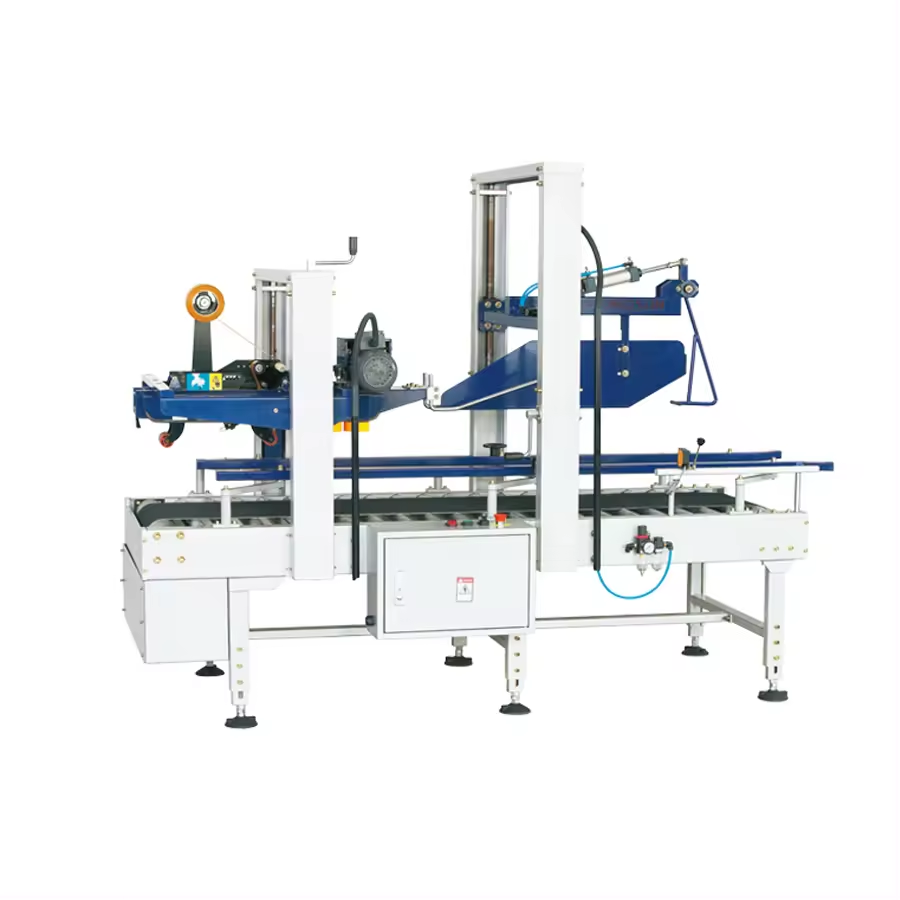

MH-FJ-3AR Automatic Carton Sealer With Guard

The machine will automatically fold carton top flaps, the taping head will seal the carton box, the finished carton box will be output through the belts.
Features:
1. Manual adjustment for different carton width and height;
2. Top and bottom belts drive;
3. Automatically fold carton top flaps;
4. Automatically convey and seal carton top;
5. Suitable to connect to full automatic production line.

Hotline:
+86-757-8540-2680

Product details

Specification:

Product Code	MH-FJ-3AR
Power	220V-380V, 50/60HZ, 0.6KW, 3PH
Air Pressure	0.4MPa-0.6MPa
Tape Type	Kraft Paper Tape, OPP Tape
Tape Width	48mm-72mm
Carton Size	L200mm-550mm, W150mm-480mm, H120mm-480mm
Speed	≤45 cases/min
Table Height	530mm-750mm(Foot Cup), 650mm-800mm(Caster Wheel)
Machine Dimension	L210mm x W900mm x H(Table Height Plus 1000mm)
Machine Weight	360KGS
Optional	1.Extension Roller Table 2.Feet Wheel 3.Guard 4.Stainless Steel 5.Hot Glue
