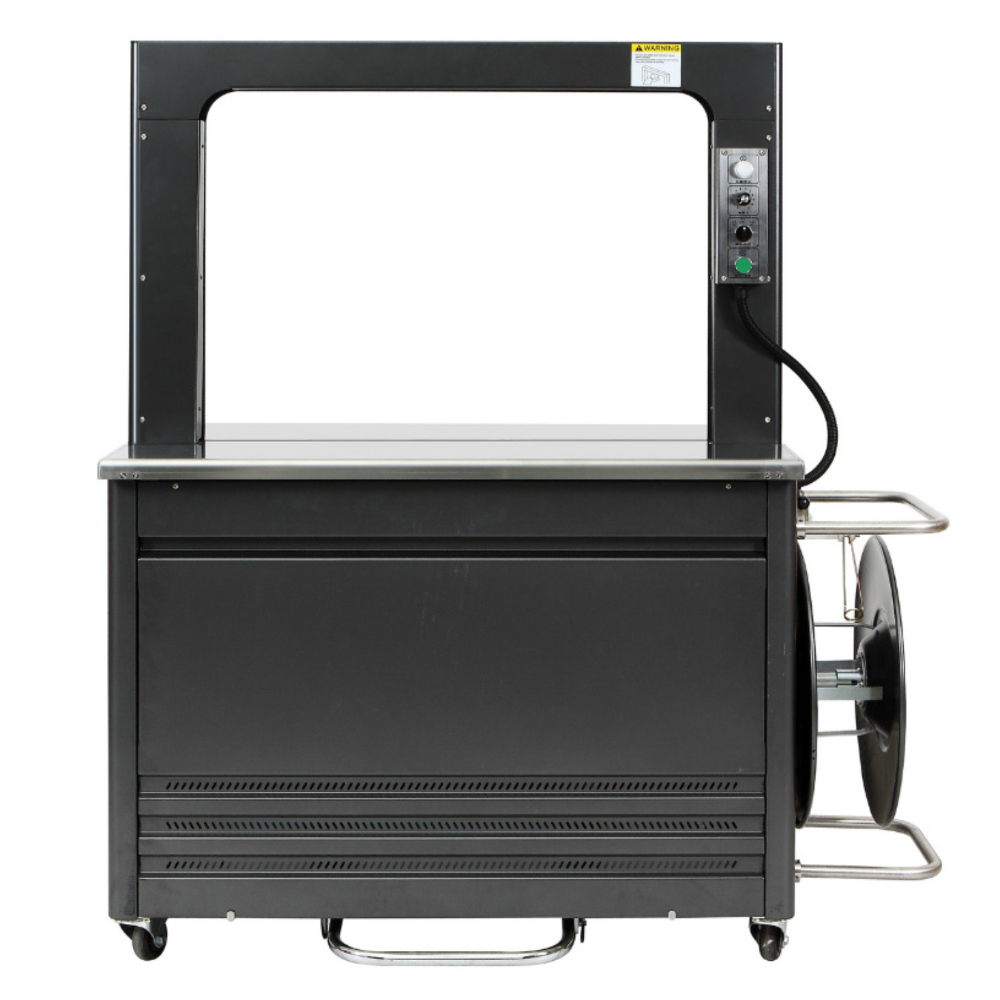

High Speed Automatic Strapping Machine


1. Automatic Strapping Machine for PP Strapping Material, strap Width from 11mm to 12mm.
2. Sturdy and compact construction with a small footprint. Easy, safe, and user-friendly operation
3. With a large tabletop area and high-capacity reel for strapping material
4. Adjustable strap tension from low to high
5. Electronic heating temperature control
6. Automatic Strap Feeding System
7. Automatic Strap Detection


Product details


Model No. YS 305 YS 309 YS 312
Strap Width 5mm-6mm 8mm-9mm 11mm-12mm
Strap Thickness 0.5mm-0.8mm 0.5mm-0.8mm 0.5mm-0.8mm
Tension Range 0-45KGS 0-55KGS 0-55KGS
Packing Speede ≤50 cycles/min 40 cycles/min ≤40 cycles/min
Loading Bearing 80KGS
Working Table Height 850mm (Customized)
Standard Frame Size W650mm x H500mm (Customized)
Power 110V-220V, 50/60HZ, 0.6KW, 1PH
Machine Dimension 1180mm x 585mm x 1450mm
Machine Weight 230KGS
