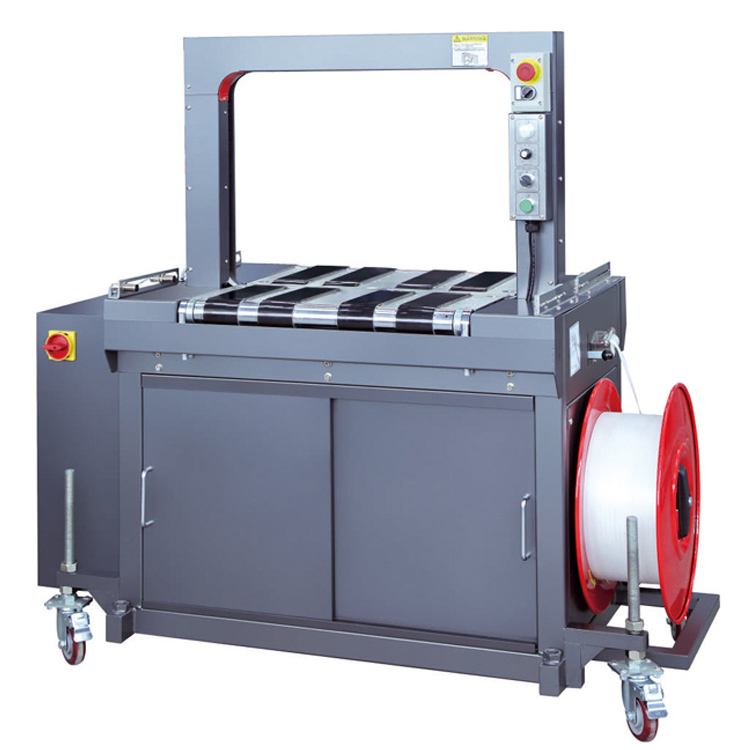

High Speed Belt Drive Automatic Strapping Machine

The Belt Drive fully automatic strapping machine’s modern design features a simplistic control panel where all parameters and diagnostics are met at the touch of your finger tips. The robust solid steel frame contains our intricate yet ergonomic direct drive 4 in 1 strapping system. This system encompasses highly efficient, non proprietary technology. Every unit is equipped with electronic gates to eliminate friction during the strap cycle which pairs directly with the high tensile stainless steel feed/tension/seal carriage.

Our Belt Drive fully automatic best suits any high speed applications that desire superior perfromance with the lowest cost of ownership on the market.


Product details


Product Code YS 305B YS 309B YS 312B
Strap Width 5mm-6mm 8mm-9mm 11mm-12mm
Strap Thickness 0.5mm-0.8mm
Packing Speed ≤40 cycles/min
Tension Range 0-45KGS
Loading Bearing 80KGS
Working Table Height 850mm (Customized)
Standard Frame Size W650mm x H500mm (Customized)
Power 110V-220V, 50/60HZ, 1.0KW, 1PH
Machine Dimension 1480mm x 730mm x 1480mm
Machine Weight 280KGS
